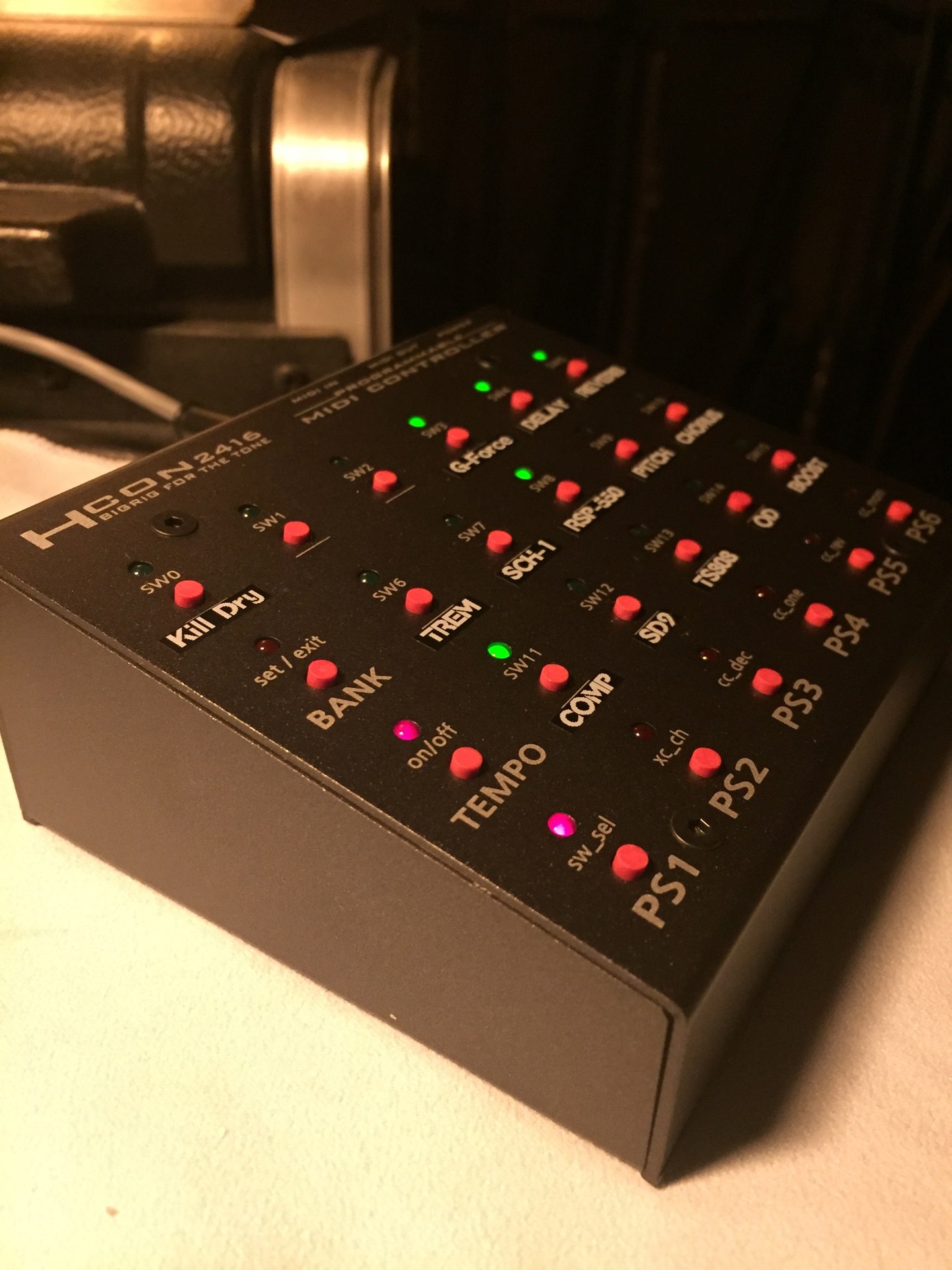

Hcon2416 is a Programmable MIDI Controller that can control your Guitar Rack System. Hcon2416 transmits simultaneously, 16 Control Change messages, 1 Program Change message, 1 Control Change message for tempo with MIDI Timing Clock. One can select, and use 16 bank, 6 preset, and global preset (97 presets) via the Bank and the Preset switches. Once a preset is selected, Hcon2416 transmits 1 PC message via MIDI channel which is set in the Power on Setup mode. Hcon2416 has 16 Instant Access switches that can transmit CC message, and on/off combinations of IA switches can be saved in 0~96 memory locations. When the tempo is set using the tempo switch, Hcon2416 transmits MIDI Timing Clock. Every switch has its own LED. There are 6 modes which are Operation mode, Bank Change mode, Setup mode, Power on Setup mode, Clock Bar mode and Data Dump mode. Hcon2416 operates using a 9VDC @ 70ma adaptor. To use Phantom Power, you must supply power through MIDI Out Port 1, 3 Pin. You can supply power through a 2.1x5.5 (mm) connector. Weight 320g Size 118 x 98 x 44 (mm)Introduction_K.html
